Detects diverse substances including metals, plastics and liquids unaffected by transparency, color or surface finish, ensuring wide applicability
Low-profile design allows protected installation adjacent to objects, optimizing space utilization
Features sensitivity adjustment potentiometer for precise detection distance control
Delivers IP67 protection with outstanding water resistance
|
Model
|
PS-DF10□ | PS-DF20□ |
|
Detection Distance
|
2~10mm | 2~20mm |
|
Power Supply Voltage
|
10~30V DC | |
|
Current
|
Consumption Current <10mA; Maximum Load Current: 200mA; Leakage Current <0.01mA
|
|
| Response Frequency | 300Hz | |
|
Response Time
|
1ms | |
|
Enclosure rating
|
IP67 | |
|
Operating Temperature
|
-25℃ ~ 70℃ | |
|
Protective Circuit
|
Reverse Polarity Protection, Short-Circuit Protection, Overload Protection Current <220mA
|
|
|
Shell Material
|
PBT | |
|
Sensing Surface Material
|
PBT | |
|

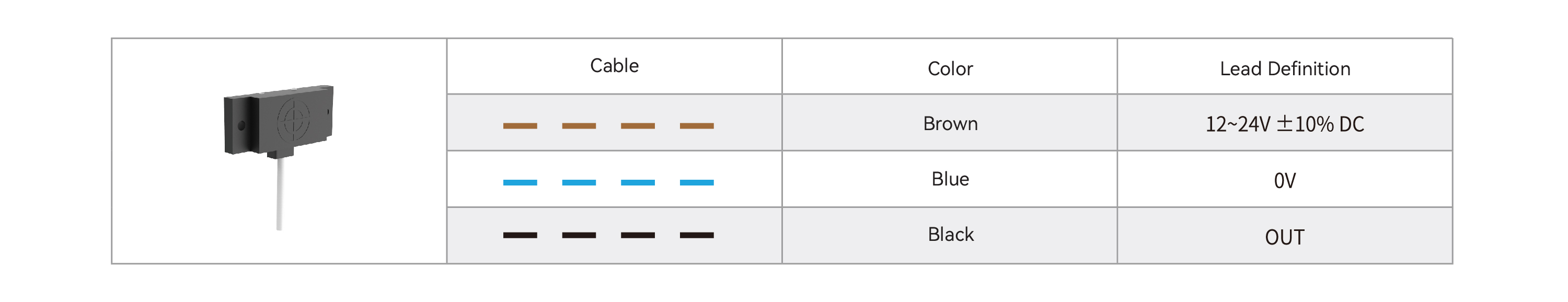

Connection Method
|
2m*φ4,
Three-core *φ0.15
PUR Cable
|
|
