Features a PTFE (Polytetrafluoroethylene) housing, resistant to high pressure and corrosion.
Suitable for working conditions such as ocean surface pressure and underwater pressure
The anti-corrosion Teflon housing provides superior resistance to seawater splashes and corrosion
Equipped with an IP67-rated protective structure, delivering excellent waterproof performance
|
Single Distance Type
|
||||||||
|
Type
|
Flush
|
Non-Flush
|
||||||
|
Model
|
PS-M08KS□-C | PS-M12KS□-C | PS-M18KS□-C | PS-M30KS□-C | PS-M08KN□-C | PS-M12KN□-C | PS-M18KN□-C | PS-M30KN□-C |
|
Dimensions
|
M8 | M12 | M18 | M30 | M8 | M12 | M18 | M30 |
|
Detection
Distance
|
1mm | 2mm | 5mm | 10mm | 2mm | 4mm | 8mm | 15mm |
|
Power Supply
Voltage
|
10~30V DC | |||||||
|
Current
|
Consumption Current <10mA; Maximum Load Current: 200mA; Leakage Current <0.01mA
|
|||||||
|
Response
Frequency
|
2KHz | 1KHz | 800Hz | 300Hz | 2KHz | 500Hz | 500Hz | 150Hz |
| Response Time | 0.1ms | 0.2ms | 0.2ms | 0.5ms | 0.1ms | 0.5ms | 0.5ms | 1ms |
|
Enclosure rating
|
IP67 | |||||||
|
Operating
Temperature
|
-25℃ ~ 70℃ | |||||||
|
Protective
Circuit
|
Reverse Polarity Protection, Short Circuit Protection, Overload Protection Current ≤ 220mA
|
|||||||
|
Residual
Voltage
|
<1.5V | |||||||
|
Current
Consumption
|
<10mA | |||||||
|
Shell Material
|
Teflon
|
|||||||
|
Sensing Surface
Material
|
PTFE
|
|||||||
|

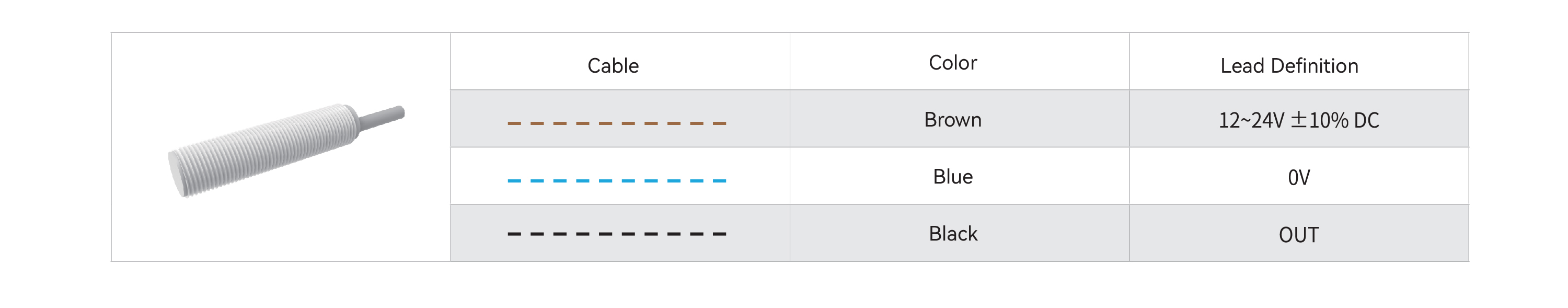

Connection
Method
|
2m*Φ3, Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4, Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5, Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5, Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ3 Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4 Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5 Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5 Three-core *Φ0.34 Oil-resistant PVC Cable |
|
Double-Distance Type
|
||||||||
|
Type
|
Flush
|
Non-Flush
|
||||||
|
Model
|
PS-M08KS□-C | PS-M12KS□-C | PS-M18KS□-C |
|
PS-M08KN□-C | PS-M12KN□-C | PS-M18KN□-C |
|
|
Dimensions
|
M8 | M12 | M18 |
|
M8 | M12 | M18 | |
|
Detection
Distance
|
2mm | 4mm | 8mm | 4mm | 8mm | 16mm | ||
|
Power Supply
Voltage
|
10~30V DC | |||||||
|
Current
|
Consumption Current <10mA; Maximum Load Current: 200mA; Leakage Current <0.01mA
|
|||||||
|
Response
Frequency
|
2KHz | 1KHz | 800Hz | 2KHz | 500Hz | 500Hz | ||
| Response Time | 0.1ms | 0.2ms | 0.2ms | 0.2ms | 0.5ms | 0.5ms | ||
|
Enclosure rating
|
IP67 | |||||||
|
Operating
Temperature
|
-25℃ ~ 70℃ | |||||||
|
Protective
Circuit
|
Reverse Polarity Protection, Short Circuit Protection, Overload Protection Current ≤ 220mA
|
|||||||
|
Residual
Voltage
|
<1.5V |
＜2.0V |
＜2.0V |
|
＜1.5V |
＜2.0V |
＜2.0V |
|
|
Current
Consumption
|
<10mA | |||||||
|
Shell Material
|
Teflon
|
|||||||
|
Sensing Surface
Material
|
PTFE
|
|||||||
|
Connection
Method
|
2m*Φ3, Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4, Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5, Three-core *Φ0.34 Oil-resistant PVC Cable |
|
2m*Φ3 Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4 Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5 Three-core *Φ0.34 Oil-resistant PVC Cable |
|
