High-Temperature Resistant Inductive Proximity Sensors PS-M Series

High temperature resistance | Circuit protection included | High-level protection

Suitable for harsh environments ranging from -25℃ to 120℃, widely used in machinery and food processing industries.

Download PDF

Product Features

High temperature resistance

Withstands high temperature environments up to 120℃, equipped with high-temperature-resistant silicone cables for complete protection

Circuit protection included

Features short-circuit protection, overload protection and reverse polarity protection

High-level protection

IP67-rated protective structure with excellent waterproof performance

Application Scenarios

Technical Parameter

Single Distance Type
Type	Flush				Non-Flush
Model	PS-M08KS□-HT	PS-M12KS□-HT	PS-M18KS□-HT	PS-M30KS□-HT	PS-M08KN□-HT	PS-M12KN□-HT	PS-M18KN□-HT	PS-M30KN□-HT
Dimensions	M8	M12	M18	M30	M8	M12	M18	M30
Detection Distance	1mm	2mm	5mm	10mm	2mm	4mm	8mm	15mm
Power Supply Voltage	10~30V DC
No-Load Current	<10mA
Maximum Load Current	120mA	150mA	150mA	150mA	120mA	150mA	150mA	150mA
Leakage Current	＜0.01mA
Response Frequency	1KHz	1KHz	400Hz	200Hz	800Hz	800Hz	300Hz	150Hz
Response Time	0.1ms	0.1ms	0.5ms	0.5ms	0.2ms	0.2ms	0.5ms	1ms
Enclosure rating	IP67
Operating Temperature	-25℃ ~ 120℃
Protective Circuit	Reverse Polarity Protection, Short Circuit Protection
Overload Protection Current	120mA	150mA	150mA	150mA	120mA	150mA	150mA	150mA
Residual Voltage	<1.5V
Current Consumption	<10mA
Shell Material	Stainless Stee
Sensing Surface Material	Teflon

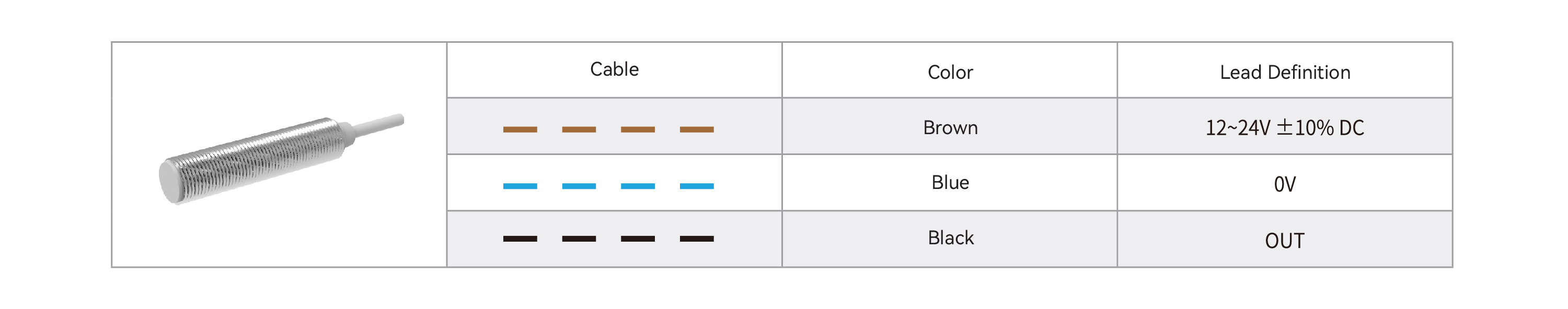

Connection Method	2m Φ4.8, 3-Core Φ0.34 Silicone
Double-Distance Type
Type	Flush				Non-Flush
Model	PS-M08LS□-HT	PS-M12LS□-HT	PS-M18LS□-HT	PS-M30LS□-HT	PS-M08LN□-HT	PS-M12LN□-HT	PS-M18LN□-HT	PS-M30LN□-HT
Dimensions	M8	M12	M18	M30	M8	M12	M18	M30
Detection Distance	2mm	4mm	8mm	16mm	4mm	8mm	16mm	25mm
Power Supply Voltage	10~30V DC
No-Load Current	<10mA
Maximum Load Current	120mA	150mA	150mA	150mA	120mA	150mA	150mA	150mA
Leakage Current	＜0.01mA
Response Frequency	800Hz	800Hz	400Hz	200Hz	500Hz	500Hz	300Hz	150Hz
Response Time	0.2ms	0.2ms	0.5ms	0.5ms	0.5ms	0.5ms	0.5ms	1ms
Enclosure rating	IP67
Operating Temperature	-25℃ ~ 120℃
Protective Circuit	Reverse Polarity Protection, Short Circuit Protection
Overload Protection Current	120mA	150mA	150mA	150mA	120mA	150mA	150mA	150mA
Residual Voltage	<1.5V	<2.0V			<1.5V	<2.0V
Current Consumption	<10mA
Shell Material	Stainless Stee
Sensing Surface Material	Teflon
Connection Method	2m Φ4.8, 3-Core Φ0.34 Silicone
