Wide model selection: K-type, L-type, F-type, R-type, and U-type available, featuring dual-channel output for beam status monitoring
Ideal for installation in confined spaces
High response frequency up to 3KHz with stable operation performance
5mm slot width enables easy detection of thin objects with stable output
Connector type enables quick plug-and-play operation for simple and convenient use
|
Model (NPN)
|
GP-P670K | GP-P671L | GP-P672T | GP-P673Y |
|
Model (PNP)
|
GP-P670KP | GP-P671LP | GP-P672TP | GP-P673YP |
|
Appearance
|
|
|
|
|
|
Types
|
K Type | L Type | T Type | Y Type |
|
Detection Distance
|
5mm (slot width)
|
|||
|
Standard Detection
Object
|
An opaque object with a size of more than 0.8mm * 1.2mm
|
|||
|
Repeatability
|
≤0.03mm | |||
|

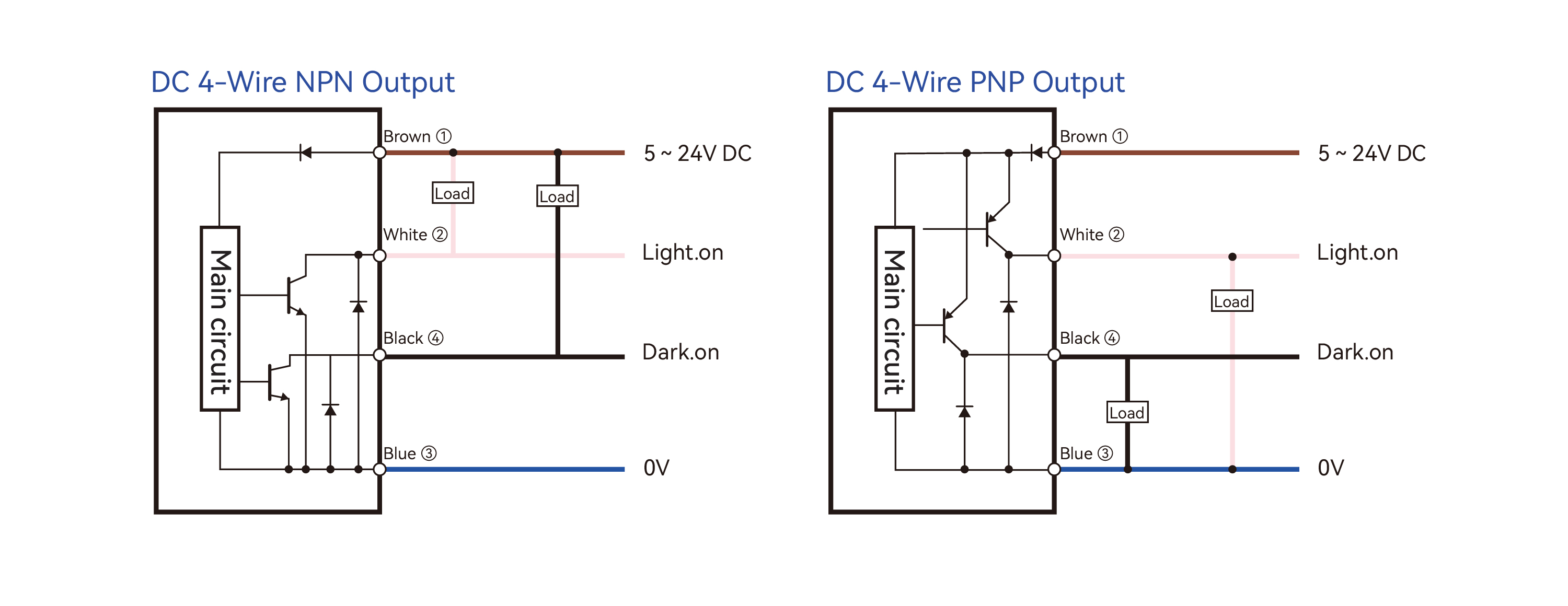

Output Mode
|
NPN or PNP open collector
|
|||
|
Light Mode
|
L.on (light-receiving operation) / D.on (light-shielding operation), which can be switched
|
|||
|
Indicator
|
The light goes off when an object is detected, and the light is on when there is no object.
|
|||
|
Response Frequency
|
3kHz | |||
|
Light Source
|
Infrared light
|
|||
|
Operating Voltage
|
DC 5V ~ 24V | |||
|
Residual Voltage
|
≤ 1V (when the load current is 50mA)
|
|||
|
Current Consumption
|
≤8mA | |||
|
Protective Circuit
|
Surge protection, reverse polarity protection, overload protection
|
|||
|
Ambient Light Intensity
|
Illuminance on the light-receiving surface: Incandescent lamp; ≤ 1000 Lux
|
|||
|
Ambient Temperature
|
During operation: -25°C to +55°C; During storage: -30°C to +80°C, without freezing
|
|||
|
Ambient Humidity
|
During operation: 5% to 85% RH; During storage: 5% to 95% RH, without condensation
|
|||
|
Withstand Voltage
|
AC, 1000V for 1 minute, between all power connection terminals and the housing
|
|||
|
Vibration Resistance
|
10 to 55 Hz, with an amplitude of 1.5 mm, for 2 hours in each of the X, Y, and Z directions
|
|||
|
Insulation Resistance
|
Between all power connection terminals and the housing, over 20 MΩ (based on DC250V)
|
|||
|
Enclosure rating
|
IP50 | |||
|
Material
|
PC | |||
|
Wire Outlet Method
|
Connector
|
|||
