Finger-sized sensor eliminates installation space constraints; offers both top and front detection options for flexible field applications
Ultra-compact square design enables simple installation that can be secured with just one screw
Detects metal positioning and limits, ideal for workbench positioning applications
| Model | NPN | PS-F02NO | PS-H02NO | PS-F04NO | PS-H04NO | PS-F05NO | PS-H05NO |
|
Detection Type
|
Front Detection
|
Top Detection
|
Front Detection
|
Top Detection
|
Front Detection
|
Top Detection
|
|
|
Maximum Operating Distance
|
2.5mm×8% | 4mm×8% | 5mm×8% | ||||
|
Stable Detection Range
|
0~2.1mm | 0~3.3mm | 0~4.2mm | ||||
|
Standard Detection Object (Iron)
|
15mm×15mm×1mm | 20mm×20mm×1mm | |||||
|
Detectable Objects
|
Magnetic Metals
|
||||||
|
Hysteresis
|
Within 20% of Detection Distance
|
||||||
|
Repeatability
|
Below 0.04mm
|
||||||
|
Power Supply Voltage
|
DC12~24V Ripple (p-p) Below 10% (DC10~30V)
|
||||||
|
Current Consumption
|
Below 15mA
|
||||||
|
Control Output
|
NPN Open Collector Transistor Maximum Inrush Current: 100mA Applied Voltage: Below 30V DC (Between Output and 0V) Residual Voltage: Below 1.5V (at 100mA Inrush Current) Below 0.4V (at 16mA Inrush Current) PNP Open Collector Transistor
Maximum Inrush Current: 100mA Applied Voltage: Below 30V DC (Between Output and 0V) Residual Voltage: Below 2V (at 100mA Inrush Current) Below 0.4V (at 16mA Inrush Current) |
||||||
|
Output Action
|
O: Normally Open
|
||||||
|
Maximum Response Frequency
|
500Hz | 300Hz | |||||
|
Indicator
|
Action Indicator (Red)
|
||||||
|
Protection Circuit
|
Short-Circuit Protection, Reverse Polarity Protection, Surge Protection Circuit
|
||||||
|
Ambient Temperature
|
Operating Temperature: -25℃~70℃, Storage Temperature: -40℃~85℃
|
||||||
|
Ambient Humidity
|
Operating Humidity: 35~85%RH, Storage Humidity: 35~95%RH
|
||||||
|
Withstand Voltage
|
AC1,000V 50/60Hz for 1 minute between Charging Unit and Shell
|
||||||
|
Insulation Resistance
|
Above 500MΩ (Measured with DC500V Megohmmeter) between Charging Unit and Shell
|
||||||
|
Vibration Resistance (Durability)
|
10~55Hz with a vertical amplitude of 1.5mm for 2 hours in each X, Y, Z direction
|
||||||
|
Shock Resistance (Durability)
|
500m/s2, 3 times in each X, Y, Z direction
|
||||||
|
Fluctuation in
Detection
Distance
|
Temperature
Characteristics
|
Within 8% of detection distance at 23℃ in the operating temperature range
|
|||||
|
Voltage
Characteristics
|
Within ±2% when the supply voltage fluctuates within ±10%
|
||||||
|
Protection Structure
|
IP67 | ||||||
|
Protection Structure
|
PBT | ||||||
|
Cable
|

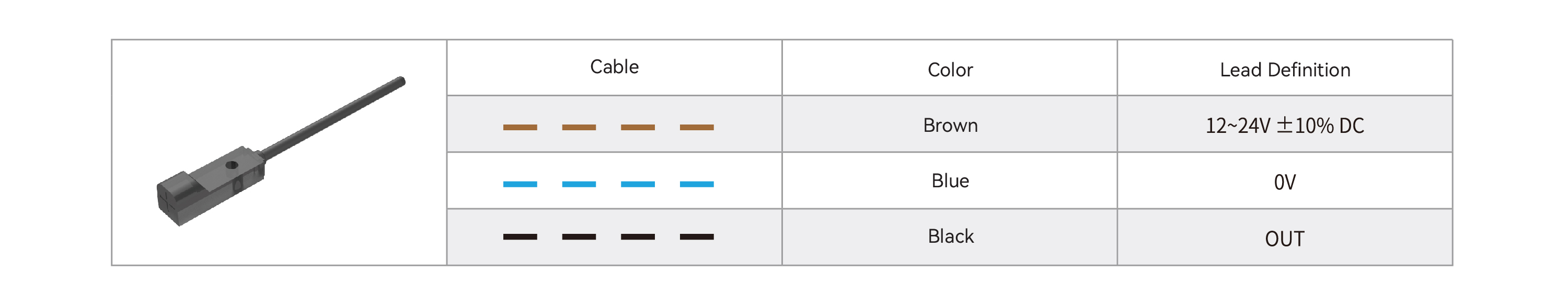

Wire Lead Type (Standard Wire Length: 2m)
|
||||||
