Bar-type Photoelectric Sensors employ linear light beams to reliably detect perforated objects, preventing missed detection caused by small spot sizes, while incorporating background cancellation to effectively eliminate interference.
Blocks background interference for stable object detection, with color-independent fixed-distance sensing
Unlike small-spot sensors, easily detects perforated or porous objects
Red or blue light source selectable for application-specific requirements
|

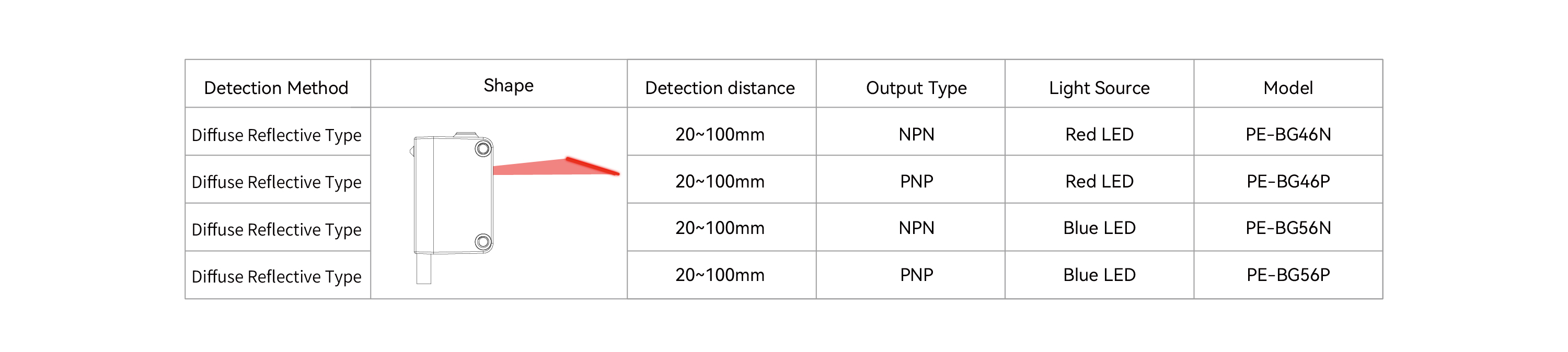

Model
|
NPN | PE-BG46N | PE-BG56N | ||
| PNP | PE-BG46P | PE-BG56P | |||
|
Detection Method
|
Diffuse Reflective Type
|
Diffuse Reflective Type
|
|||
|
Detection Distance
(Background Suppression)
|
20~100mm | 20~100mm | |||
|
Response Time
|
Less than 1ms
|
Less than 1ms
|
|||
|
Light Source
|
Red LED
|
Blue LED
|
|||
|
Wavelength
|
635nm | 470nm | |||
|
Power Supply Voltage
|
DC 12 ～24 VDC±10% | DC 12 ～24 VDC±10% | |||
|
Current Consumption
|
≤20mA | ≤20mA | |||
|
Operating Mode
|
Selectable ON mode for light blocking or light incidence.
|
Selectable ON mode for light blocking or light incidence.
|
|||
|
Control Output
|
Residual Voltage: Below 1V for loads <10mA,
Below 2V for loads 10-100mA
|
Residual Voltage: Below 1V for loads <10mA,
Below 2V for loads 10-100mA
|
|||
|
Protection Circuit
|
Surge Protection Circuit, Short Circuit Protection, Reverse
Polarity Protection
|
Surge Protection Circuit, Short Circuit Protection, Reverse
Polarity Protection
|
|||
|
Output Indicator
|
Red LED
|
Red LED
|
|||
|
Power Indicator
|
Green LED
|
Green LED
|
|||
|
Ambient Temperature
|
Operating Temperature: -10 to +55°C,
Storage Temperature: -30 to 70°C
|
Operating Temperature: -10 to +55°C,
Storage Temperature: -30 to 70°C
|
|||
|
Ambient Humidity
|
Operating Humidity: 35-85%RH,
Storage Humidity: 35-85%RH
|
Operating Humidity: 35-85%RH,
Storage Humidity: 35-85%RH
|
|||
|
Ambient Illuminance for Use
|
Incandescent Light: ≤3000lux, Sunlight: ≤10000lux
|
Incandescent Light: ≤3000lux, Sunlight: ≤10000lux
|
|||
|
Vibration Resistance
(Durability)
|
10 to 55Hz, 1.5mm double amplitude, 2 hours on X, Y, Z axes
|
10 to 55Hz, 1.5mm double amplitude, 2 hours on X, Y, Z axes
|
|||
|
Shock Resistance (Durability)
|
500m/s2, 3 times in each X, Y, Z direction
|
500m/s2, 3 times in each X, Y, Z direction
|
|||
|
Enclosure rating
|
IP65 | IP65 | |||
|
Connection Method
|
Wire Lead Type
|
Wire Lead Type
|
|||
|
Shell Material
|
PC | PC | |||
