Detects liquids, plastics, glass and other non-metallic objects regardless of color - Built-in amplifier enables quick and easy adjustment
Capable of detecting glass, bakelite, acrylic and other non-metallic materials
Features sensitivity potentiometer for precise detection range and sensitivity adjustment
Long service life with high stability performance
|
Single Distance Type
|
||||||||
|
Type
|
Flush
|
Non-Flush
|
||||||
|
Model
|
PS-D08KS□ | PS-D12KS□ | PS-D18KS□ | PS-D30KS□ | PS-D08KN□ | PS-D12KN□ | PS-D18KN□ | PS-D30KN□ |
|
Dimensions
|
M8 | M12 | M18 | M30 | M8 | M12 | M18 | M30 |
|
Detection
Distance
|
0.1~1mm | 1~3mm | 2~8mm | 2~20mm | 0.1~2mm | 1~6mm | 2~15mm | 2~30mm |
|
Power Supply
Voltage
|
10~30V DC | |||||||
|
No-Load Current
|
＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA |
|
Maximum Load
Current
|
200mA | 200mA | 300mA | 300mA | 200mA | 200mA | 300mA | 300mA |
|
Leakage Current
|
＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA |
|
Response
Frequency
|
100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz |
|
Response Time
|
1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms |
|
Enclosure Rating
|
IP67 | |||||||
|
Operating
Temperature
|
-25℃ ~ 70℃ | |||||||
|
Protective Circuit
|
Reverse Polarity Protection, Short Circuit Protection
|
|||||||
|
Overload
Protection Curren
|
220mA | 220mA | 350mA | 350mA | 220mA | 220mA | 350mA | 350mA |
|
Residual Voltage
|
<2.0V | |||||||
|
Current
Consumption
|
<10mA | |||||||
|
Shell Material
|
Brass Nickel
Plated
|
PBT | PBT | PBT |
Brass Nickel
Plated
|
PBT | PBT | PBT |
|
Sensing Surface
Material
|
PBT | |||||||
|

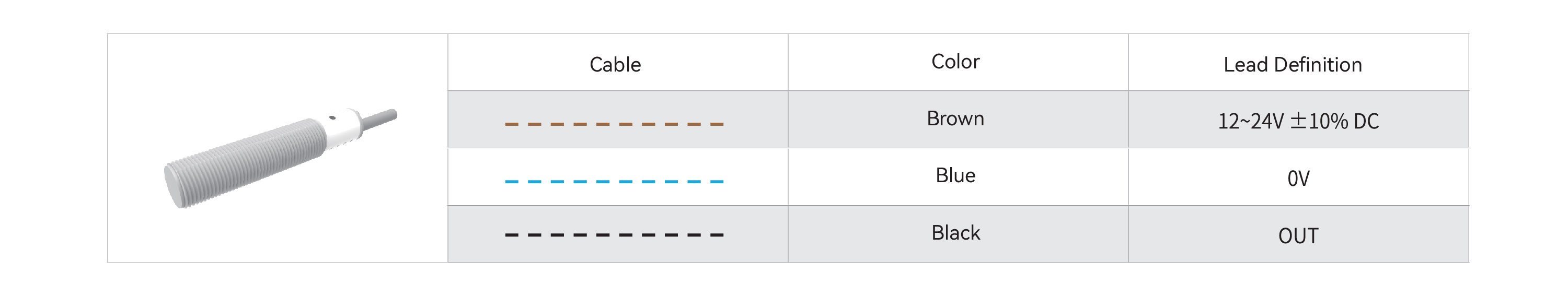

Connection
Method
|
2m*Φ3，
Three-core *Φ0.15 Oil-resistant PVC Cable
|
2m*Φ4， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ3， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5， *Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
|
Double-Distance Type
|
||||||||
|
Type
|
Flush
|
Non-Flush
|
||||||
|
Model
|
PS-D08LS□ | PS-D12LS□ | PS-D18LS□ | PS-D30LS□ | PS-D08LN□ | PS-D12LN□ | PS-D18LN□ | PS-D30LN□ |
|
Dimensions
|
M8 | M12 | M18 | M30 | M8 | M12 | M18 | M30 |
|
Detection
distance
|
0.1~2mm | 1~6mm | 2~16mm | 2~25mm | 0.1~4mm | 1~8mm | 2~25mm | 2~35mm |
|
Power Supply
Voltage
|
10~30V DC | |||||||
|
No-Load Current
|
＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA | ＜10mA |
|
Maximum Load
Current
|
200mA | 200mA | 300mA | 300mA | 200mA | 200mA | 300mA | 300mA |
|
Leakage Current
|
＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA | ＜0.01mA |
|
Response
Frequency
|
100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz |
|
Response Time
|
1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms | 1.5ms |
|
Enclosure rating
|
IP67 | |||||||
|
Operating
Temperature
|
-25℃ ~ 70℃ | |||||||
|
Protective Circuit
|
Reverse Polarity Protection, Short Circuit Protection
|
|||||||
|
Overload
Protection Curren
|
220mA | 220mA | 350mA | 350mA | 220mA | 220mA | 350mA | 350mA |
|
Residual Voltage
|
<2.0V | |||||||
|
Current
Consumption
|
<10mA | |||||||
|
Shell Material
|
Brass Nickel
Plated
|
PBT | PBT | PBT |
Brass Nickel
Plated
|
PBT | PBT | PBT |
|
Sensing Surface
Material
|
PBT | |||||||
|
Connection
Method
|
2m*Φ3， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ3， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ4， Three-core *Φ0.15 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
2m*Φ5， Three-core *Φ0.34 Oil-resistant PVC Cable |
