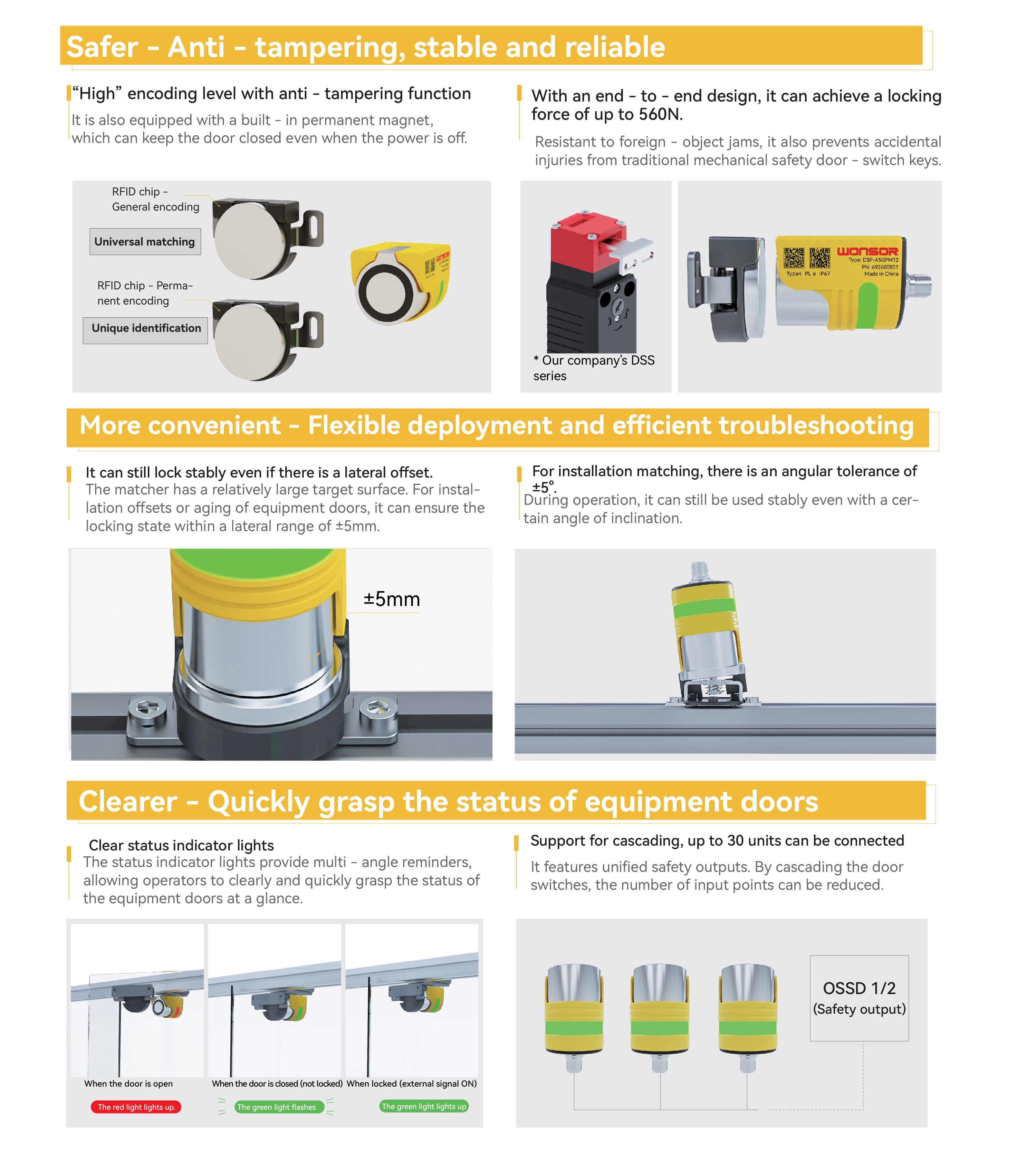

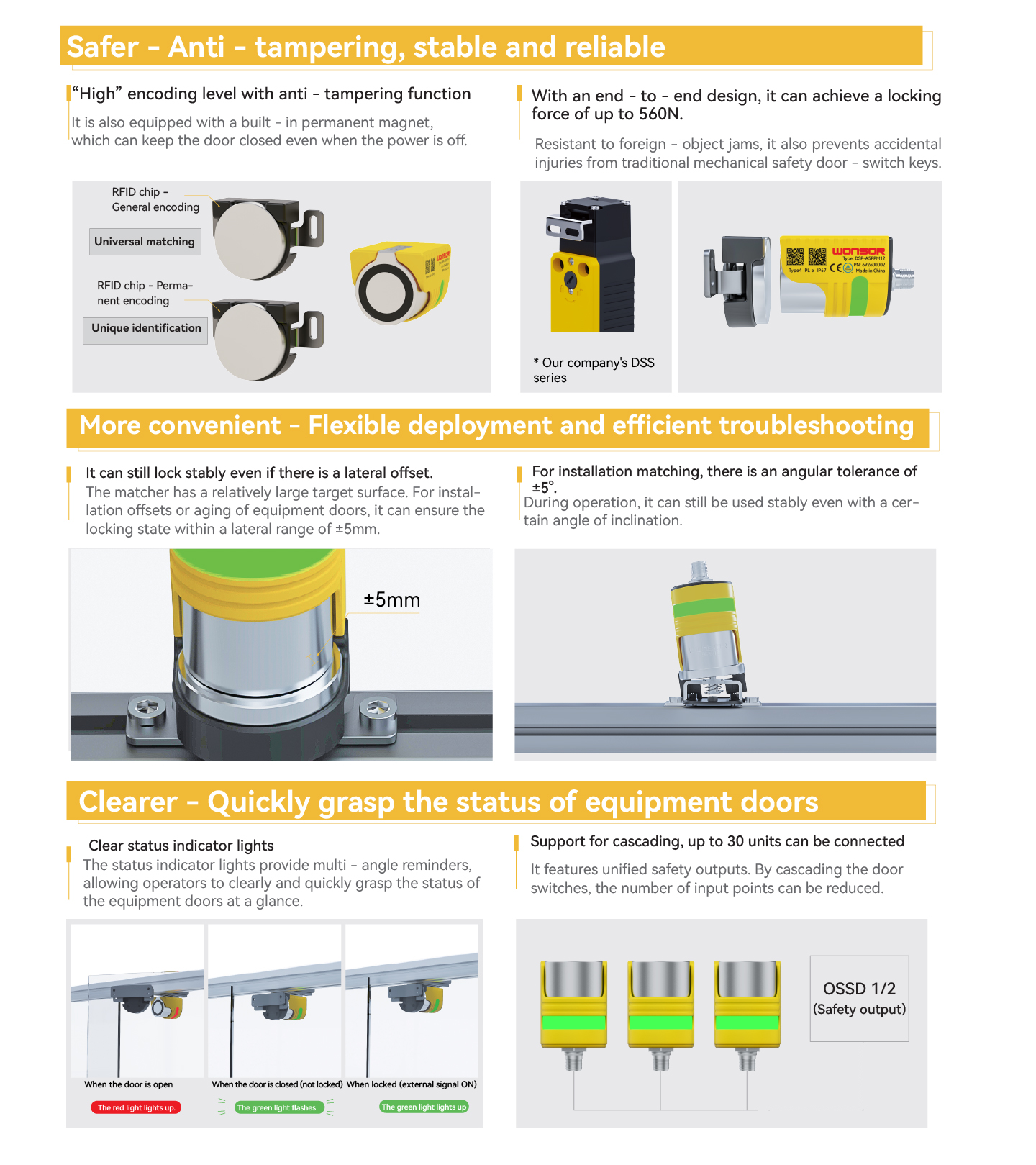

Features a magnetic locking mechanism with a locking force of up to 560N, equipped with safety detection, compact design to save space—a new door lock that meets the demand for equipment miniaturization.
"High" coding for unique identification, preventing tampering and unauthorized unlocking
Smooth surface design, reducing injury risks compared to traditional bolts
Supports door misalignment recognition and locking, offering greater installation compatibility
Clear status indicator lights for quick anomaly detection and response

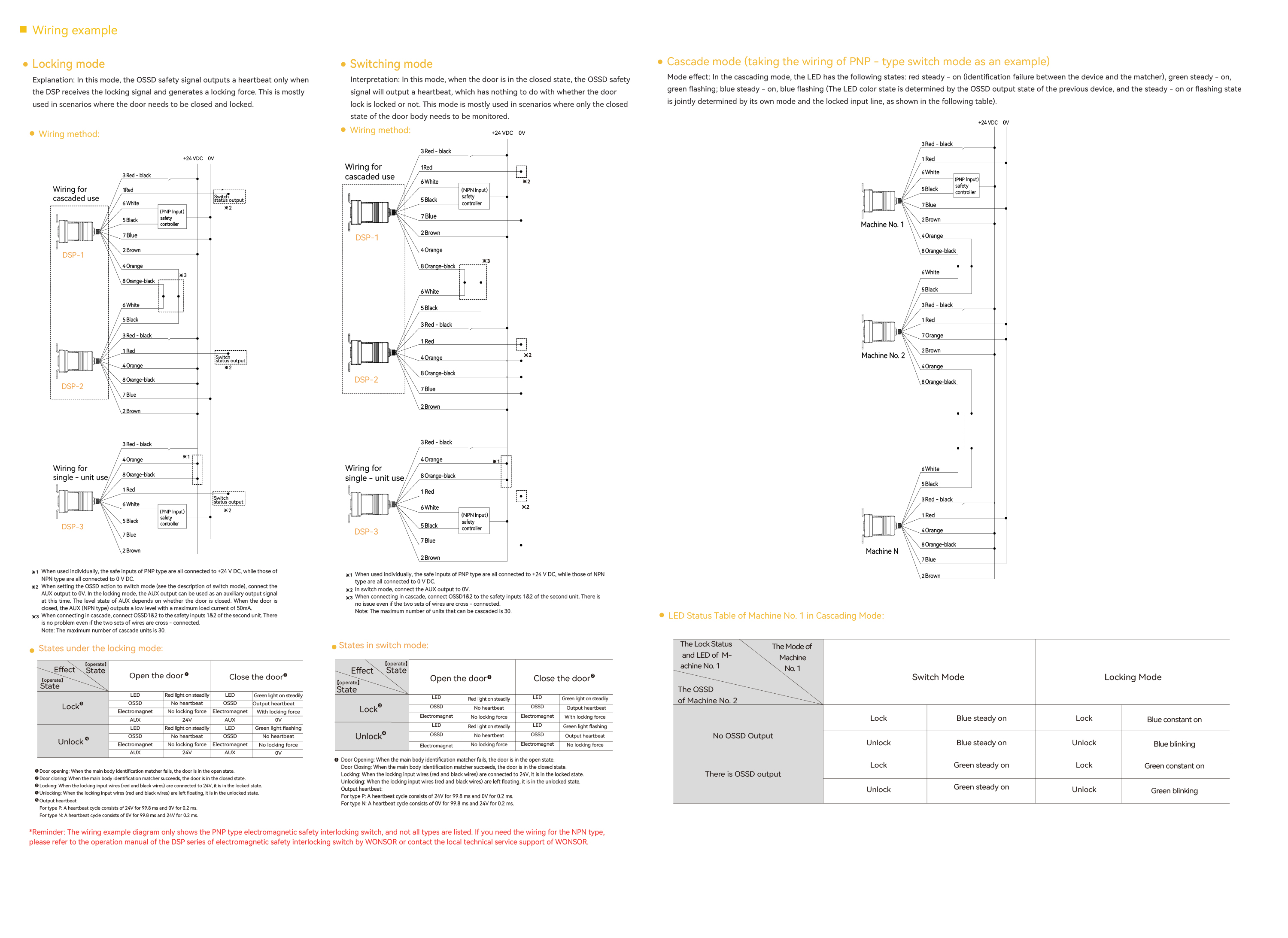

Supports up to 30 cascades, reducing input points
| Model | DSP-□□□ | |
| Power supply |
Power supply voltage
|
24V DC ±10% |
|
Power consumption (no load)
|
About 6W
|
|
|
Operating distance
|
Sao(OFF->ON) | 1mm |
| Sar(ON->OFF) | 15mm | |
|
Matcher working inclination angle
|
≤5° | |
|
Permissible operating frequency
|
5Hz | |
|
Cascade capacity
|
30 | |
|
Response time
|
Lock -> Unlock
|
＜40ms |
|
Unlock -> Lock
|
＜40ms | |
|
(The matcher) In position -> Out of position
|
＜3ms+3ms* (Number of units in cascade connection-1) | |
|
(The matcher) Out of position -> In position
|
＜3ms+3ms* (Number of units in cascade connection-1) | |
|
Control Output
(OSSD Safety Output)
|
Output type
|
Transistor output*2
|
|
Maximum load current
|
150mA | |
|
Residual voltage (when ON)
|
P-type: Maximum 1.25V (with 3m cable)
N-type: Maximum 0.9V (with 3m cable)
|
|
|
(Matcher) In -
position -> Off - position
|
P-type: Maximum 0.015V(with 3m cable)
N-type: Maximum 9V (with 3m cable)
|
|
|
Leakage current
|
Maximum 1.77mA
|
|
|
Maximum load capacity
|
＜4.7nF
|
|
|
AUX output
(Non - safety output)
|
Output type
|
Transistor output (Type NPN)
|
|
Maximum load current
|
50mA | |
|
Residual voltage (when ON)
|
＜0.5V（when the cable length is 3m）
|
|
|
External safety input
|
Input current
|
3mA*2 |
|
Locking input
|
Input current
|
3mA |
|
Protection circuit
|
Reverse Polarity Protection; Output Short-Circuit Protection ; Power Surge Protection; Output Reverse Polarity Protection; Electrostatic Discharge (ESD) Protection
|
|
|
Locking holding force
|
When powered on
|
560N |
|
When powered off
|
20N | |
|
Environmental
resistance
|
Protection structure
|
IP65/IP67 |
|
Ambient temperature for use
|
-20℃~+55℃（No freezing）
|
|
|
Ambient temperature for storage
|
-25℃~+70℃（No freezing）
|
|
|
Ambient humidity for use
|
5% ~ 95%RH | |
|
Ambient humidity for storage
|
5% ~ 95%RH | |
|
Vibration resistance
|
Frequency: 10 - 55Hz, double - amplitude: 2.0mm, 5 minutes for each of the X, Y, and Z directions
|
|
|
Impact resistance
|
Acceleration: 30g, pulse duration: 11ms, 6 times for each of the X, Y and Z directions
|
|
|
Applicable standards
|
EN ISO 13849-1:2023（PL e, Category 4） EN ISO14119 (Type4),
EN IEC 60947-5-1，EN IEC 60947-5-2，EN IEC 60947-5-3,
|
|
|
Material
|
Main body
|
PBT, PAR, Nickel-plated Steel
|
|
Matcher
|
PBT, Nickel-plated Steel, SUS304
|
|
|
Mounting bracket
|
Aluminum alloy
|
|
|
Weight
|
Main unit: Approx. 380 g; Matching unit: Approx. 182 g
|
|
