4.5mm Ultra-Slim Design | <1ms Fast Response | Detects Objects as Small as Φ2mm
4.5mm thickness saves installation space and avoids mechanical redundancy
Short-range diffuse, side-facing thru-beam, and front-facing thru-beam detection options
Simultaneous light-on and dark-on signal outputs for easy integration and status monitoring
|

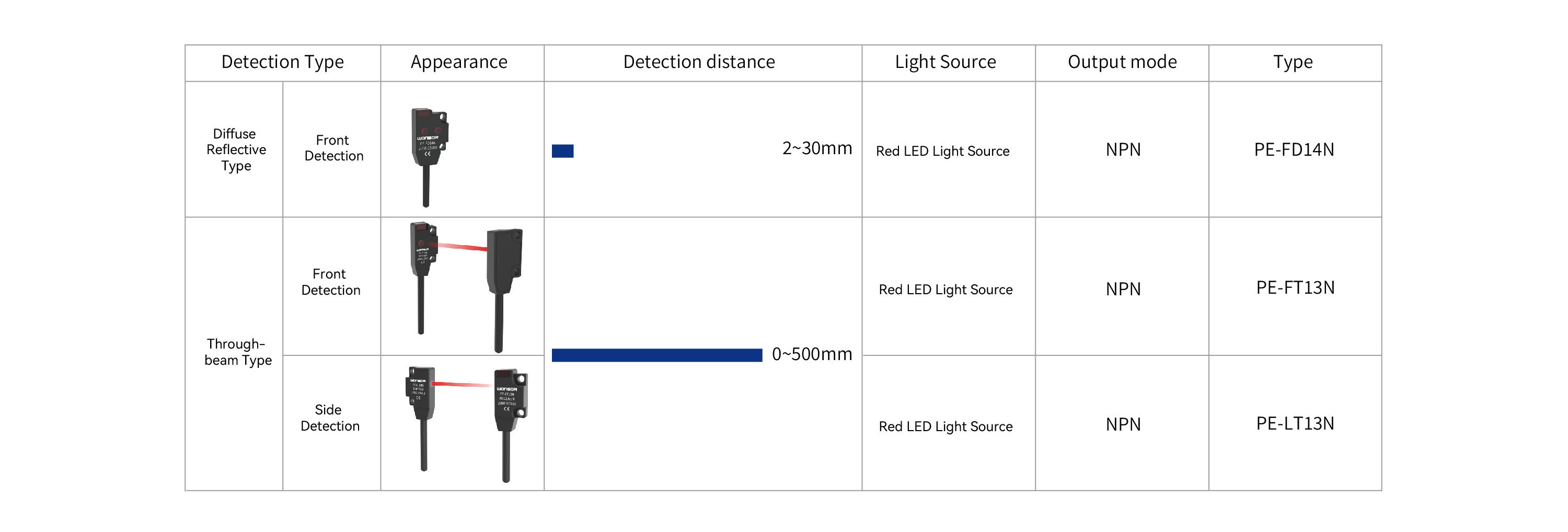

Model
|
PE-FD14N | PE-FT13N | PE-LT13N |
|
Type
|
NPN | NPN | NPN |
|
Detection Method
|
Diffuse Reflective Type
|
Through-beam Type (Front)
|
Through-beam Type (Side)
|
|
Detection Distance
|
2~30mm﹡¹ | 0-500mm | 0-500mm |
|
Minimum Detectable Object
|
Φ0.1mm Copper Wire *2
|
Opaque objects Ø2mm or larger, unaffected by the
|
Opaque objects Ø2mm or larger, unaffected by the
|
|
Response Time
|
<1ms
|
||
|
Response Frequency
|
1KHz | ||
|
Repeatability
|
0.05mm以下 | ||
|
Light Source
|
Red LED
|
||
|
Wavelength
|
650nm | ||
|
Operating Voltage
|
DC 12~24V士10% | ||
|
Current Consumption
|
＜20mA | ||
|
Operating Mode
|
Selectable mode: ON when light is blocked or ON when light is received
|
||
|
Spot Size
|
约⊘13mm@30mm | 约⊘3mm@30mm | 约⊘3mm@30mm |
|
Protective Circuit
|
Surge Protection Circuit, Short Circuit Protection, Reverse Polarity Protection
|
||
|
Output Indicator
|
Orange LED (Lights up when output is ON)
|
||
|
Power Indicator
|
Green LED
|
||
|
Ambient Temperature
|
Operating Temperature: -10℃~+55℃ (Note: Do not freeze), Storage Temperature: -30℃~70℃
|
||
|
Ambient Humidity
|
Operating Humidity: 35%RH~85%RH, Storage Humidity: 35%RH~85%RH
|
||
|
Ambient Illuminance
for Use
|
Ncandescent Light: Illuminance Level on Receiving Surface ≤ 3000Lux
|
||
|
Vibration Resistance
|
10~55Hz, double amplitude of 1.5mm, 2 hours each in X, Y, Z directions
|
||
|
Shock Resistance
|
500m/s2, 3 times in each X, Y, Z direction
|
||
|
Enclosure rating
|
lP65 | ||
| Connection Method |
Four-wire system, wire lead type, black wire for ON when light is received, white wire for ON when light is blocked
|
||
|
Shell Material
|
PC, Polycarbonate
|
||
|
Weight
|
Approximately 20g
|
Approximately 20g each for the transmitter and receiver Approximately 20g each for the transmitter and receiver
|
Approximately 20g each for the transmitter and receiver Approximately 20g each for the transmitter and receiver
|
