Plug-in Inductive Proximity Sensors PS-M Series

Modular installation with rapid docking capability

M8/M12 threaded connectors included for compatibility with multiple proximity sensor models

Download PDF

Product Features

Fast Response

Up to 2KHz response frequency enables rapid sensing and positioning

Dual Cable Options

Straight & right-angle connector cables available for flexible spatial installation

Sensing Indicator

Visual LED indicator instantly lights up upon detection for easy monitoring

Application Scenarios

Technical Parameter

Single Distance Type
Type	Flush				Non-Flush
Model	PS-M08KS□-A	PS-M12KS□-A	PS-M18KS□-A	PS-M30KS□-A	PS-M08KN□-A	PS-M12KN□-A	PS-M18KN□-A	PS-M30KN□-A
Dimensions	M8	M12	M18	M30	M8	M12	M18	M30
Detection Distance	1mm	2mm	5mm	10mm	2mm	4mm	8mm	15mm
Power Supply Voltage	10~30V DC
Current	Consumption Current <10mA; Maximum Load Current: 200mA; Leakage Current <0.01mA
Response Frequency	2000Hz	2000Hz	1000Hz	300Hz	2000Hz	1000Hz	500KHz	150Hz
Response Time	0.1ms	0.1ms	0.2ms	0.5ms	0.1ms	0.2ms	0.5ms	1ms
Enclosure rating	IP67
Operating Temperature	-25℃ ~ 70℃
Protective Circuit	Reverse Polarity Protection, Short-Circuit Protection, Overload Protection Current <220mA
Residual Voltage	<1.5V
Current Consumption	<10mA
Shell Material	Stainless Steel	Brass Nickel Plated	Brass Nickel Plated	Brass Nickel Plated	Stainless Steel	Brass Nickel Plated	Brass Nickel Plated	Brass Nickel Plated
Sensing Surface Material	PBT

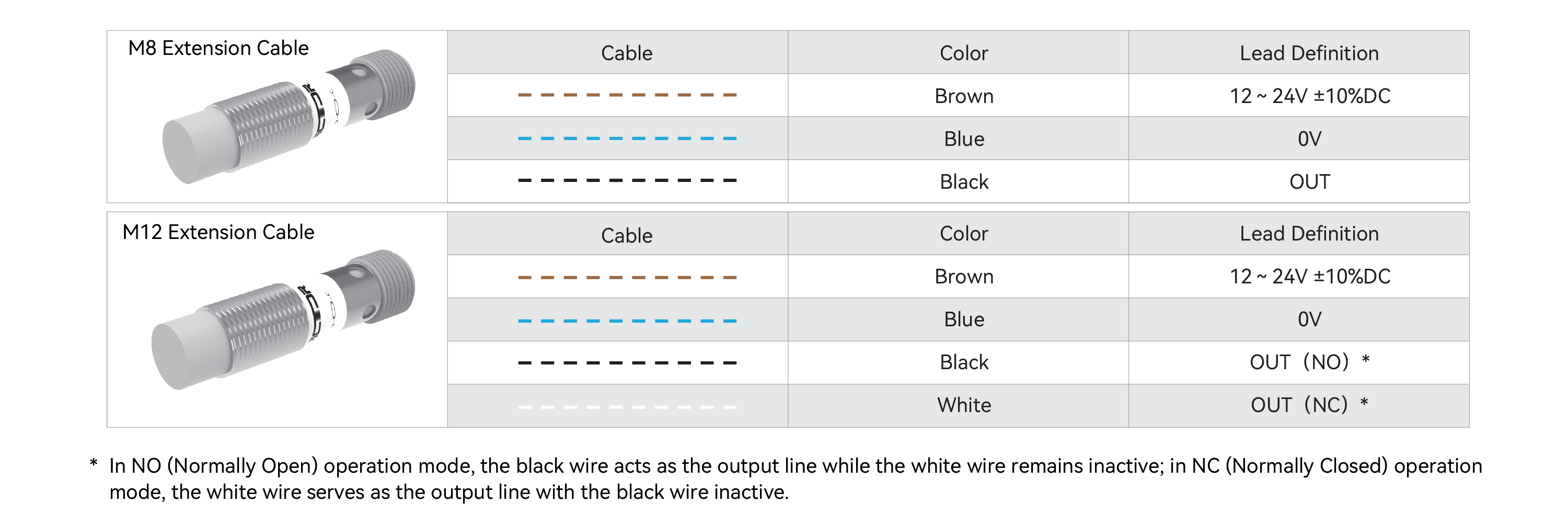

Connection Method	M8 Connector	M12 Connector	M12 Connector	M12 Connector	M8 Connector	M12 Connector	M12 Connector	M12 Connector
Double-Distance Type
Type	Flush				Non-Flush
Model	PS-M08LS□-A	PS-M12LS□-A	PS-M18LS□-A	PS-M30LS□-A	PS-M08LN□-A	PS-M12LN□-A	PS-M18LN□-A	PS-M30LN□-A
Dimensions	M8	M12	M18	M30	M8	M12	M18	M30
Detection Distance	2mm	4mm	8mm	16mm	4mm	8mm	16mm	25mm
Power Supply Voltage	10~30V DC
Current	Consumption Current <10mA; Maximum Load Current: 200mA; Leakage Current <0.01mA
Response Frequency	2000Hz	1000Hz	500Hz	150Hz	1000Hz	500KHz	150Hz	100Hz
Response Time	0.1ms	0.2ms	0.5ms	1ms	0.2ms	0.5ms	1ms	1ms
Enclosure rating	IP67
Operating Temperature	-25℃ ~ 70℃
Protective Circuit	Reverse Polarity Protection, Short-Circuit Protection, Overload Protection Current <220mA
Residual Voltage	<1.5V	<2.0V			<1.5V	<2.0V
Current Consumption	<10mA
Shell Material	Stainless Steel	Brass Nickel Plated	Brass Nickel Plated	Brass Nickel Plated	Stainless Steel	Brass Nickel Plated	Brass Nickel Plated	Brass Nickel Plated
Sensing Surface Material	PBT
Connection Method	M8 Connector	M12 Connector	M12 Connector	M12 Connector	M8 Connector	M12 Connector	M12 Connector	M12 Connector
