Square Photoelectric Sensor PE Series

Versatile detection modes with flexible range selection

Square Photoelectric Sensor PE Series offer multiple detection methods (diffuse, thru-beam, retro-reflective) with 10-30,000mm adjustable range

Diffuse, retro-reflective, and thru-beam detection options to meet on-site installation requirements

10-30,000mm adjustable detection range covering short/medium/long distances, with model-specific configurations for optimal performance

Tool-free sensing range adjustment via rotary knob, featuring M3 threaded holes for quick installation

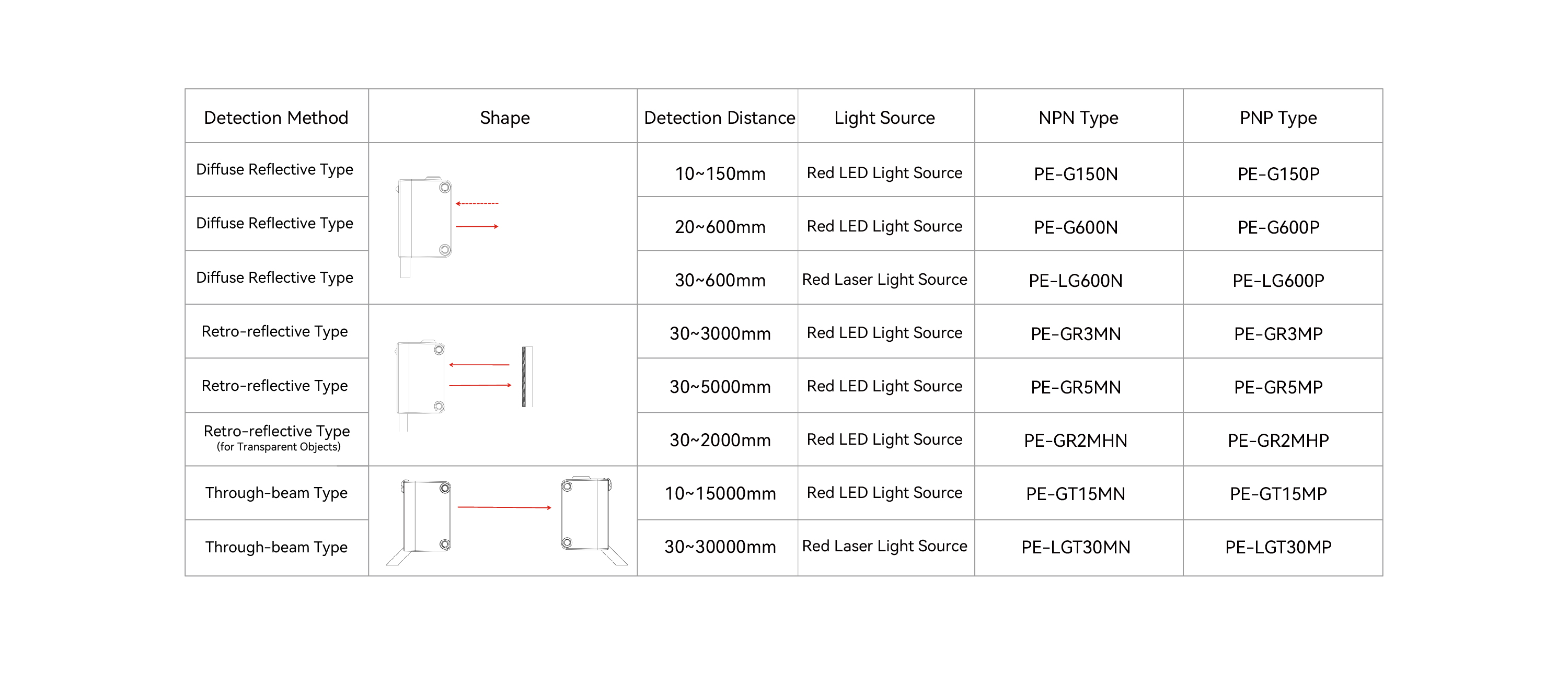

Model	NPN	PE-G150N	PE-G600N	PE-LG600N	PE-GR3MN	PE-GR5MN	PE-GR2MHN	PE-GT15MN	PE-LGT30MN
	PNP	PE-G150P	PE-G600P	PE-LG600P	PE-GR3MP	PE-GR5MP	/	PE-GT15MP	PE-LGT30MP
Detection method		Diffuse Reflective Type			Retro-reflective Type			Through-beam Type
Detection distance		10~150mm	20~600mm	30~600mm	30~3000mm	30~5000mm	30~2000mm	10~15000mm	30~30000mm
Response time		Less than 1ms
Light source		Red LED		Red Laser	Red LED				Red Laser
Wavelength		650nm
Power supply voltage		DC 12～24 VDC±10%
Current consumption		≤30mA
Action mode		Selectable ON mode for light blocking or light incidence.
Control output		Residual Voltage: Below 1V for loads <10mA, Below 2V for loads 10-100mA
Protection circuit		Surge Protection Circuit, Short Circuit Protection, Reverse Polarity Protection
Output indicator light		Red LED
Power indicator light		Green LED
Ambient temperature		Operating Temperature: -10 to +55°C, Storage Temperature: -30 to 70°C
Ambient humidity		Operating Humidity: 35-85%RH, Storage Humidity: 35-85%RH
Ambient illuminance		Incandescent Light: ≤3000lux, Sunlight: ≤10000lux
Vibration (durability)		10 to 55Hz, 1.5mm double amplitude, 2 hours on X, Y, Z axes
Impact (durability)		500m/s2, 3 times in each X, Y, Z direction
Protection class		IP65
Connection method		Wire Lead Type
Shell material		PC
