Non-blind Zone Type 4 Safety Light Curtain SG-P Series

Internationally authoritative certification, more reliable and safety.

The first domestically-produced Type 4 safety light curtain to obtain IEC 61508 (SIL 3) functional safety certification, complying with international standards such as UL508, UL61496-1, UL61496-2, and ISO13849 (Category 4, PLe), and authoritatively

Download PDF

Product Features

Meeting the highest safety standards

Achieves safety levels up to PLe and SIL3, categorized as Type 4, aligning with international standards, and simultaneously equipped with UL certification and authoritative TÜV certification.

Blind-zone-free safety design

Edge-to-edge installation method, meeting the requirements for compact and narrow installation spaces.

Optical sync supported for diverse wiring setups

Free selection between line synchronization and optical synchronization, supporting flexible A/B light switching to prevent mutual interference.

Reliable safety design

Type 4 light curtain features a dual-CPU and dual-output self-test design to prevent safety hazards caused by the failure of a single circuit.

Compact size with high protection

With a cross-sectional area of only 29mm*38mm, it achieves a maximum protection rating of IP67.

Ultra-long detection distance with excellent angle control

Supports a detection distance of 0.2 to 10m, with high compatibility within a single model, and a maximum beam divergence angle of ±2.5°.

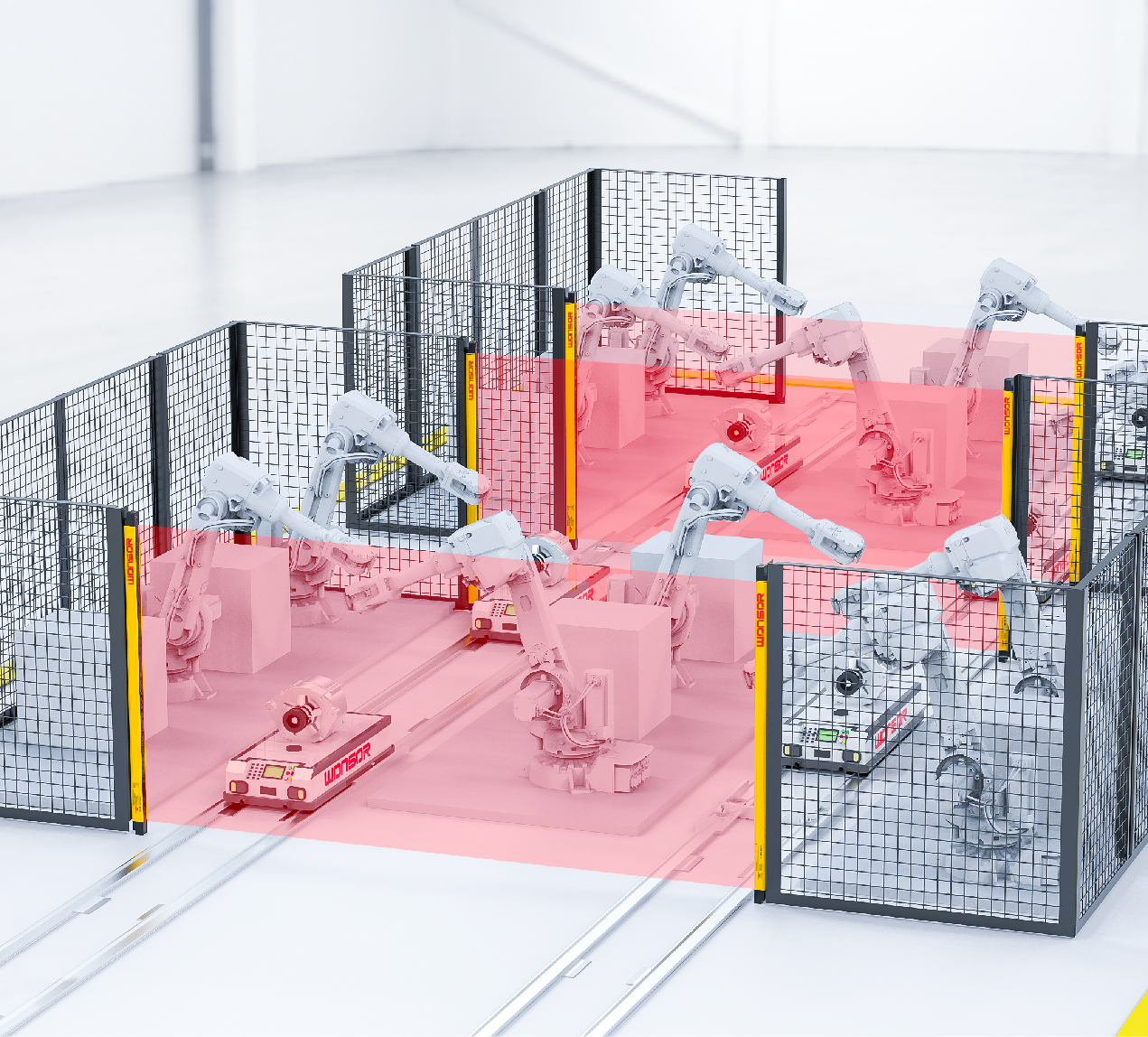

Application Scenarios

Technical Parameter

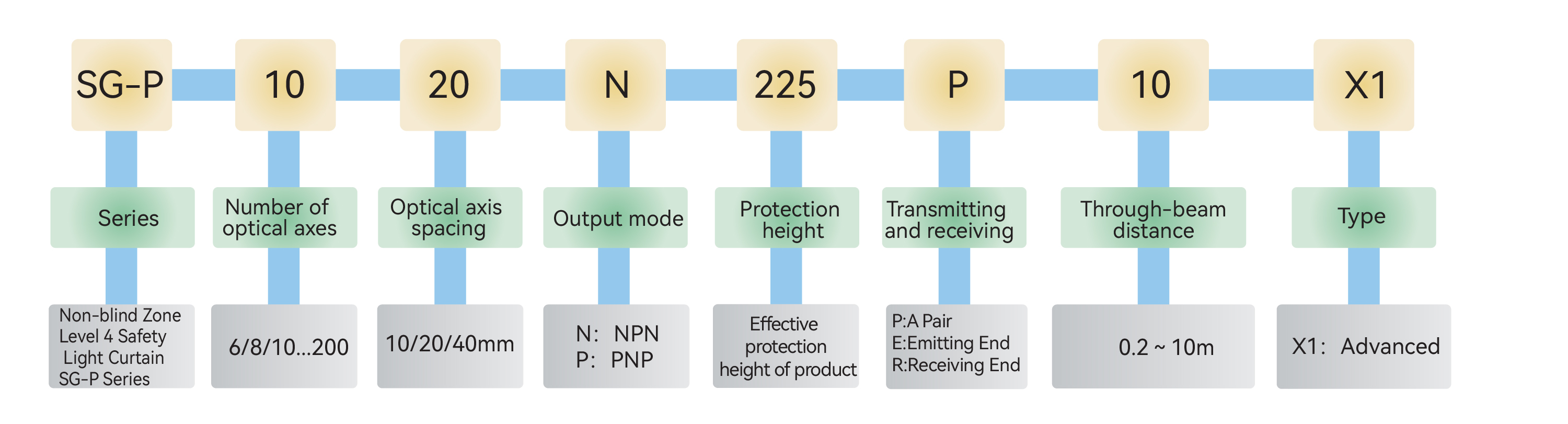

Model

SG-P□

Type

Blind zone free

Operating power supply

DC 24V ±10%

Power

3~8W

Optical axis spacing

10mm、20mm、40mm

Resolution

15mm、25mm、45mm

Number of optical axes

10mm Optical Axis Spacing：20，24，28，...，196，200
20mm Optical Axis Spacing：10，12，14，…，98，100
40mm Optical Axis Spacing：5，6, 7，...，-49，50

measurement height

(Number of optical axes- 1) * Optical axis spacing

Protection height

Protection height = Detection height + 2 * Minimum detectable object size - Optical axis diameter

Response time

Line synchronization: 8.9ms to 169.3ms, Optical synchronization: 9.2ms to 170.1ms

Signal output

OSSD Output: Dual transistor outputs (NPN or PNP)

OSSD Output Load Capacity: 200mA

OSSD Output Residual Voltage: <2.5V

AUX Output: 1x Transistor Output (NPN)

Load Capacity: Up to 50 mA, Residual Voltage: Below 2.5 V

External input

Power Supply Voltage: DC 24V ±10%

Protective circuit

Reverse Polarity Protection, Output Short-Circuit Protection

Through-beam distance

0.2-10m

Light-interference resistance

Incandescent Lamp: Below 3000 lux

Material

Main Body Shell: Aluminum
Upper and Lower Covers: Nylon (30% GF)
Front Shell: PMMA

Insulation resistance

≥100MΩ

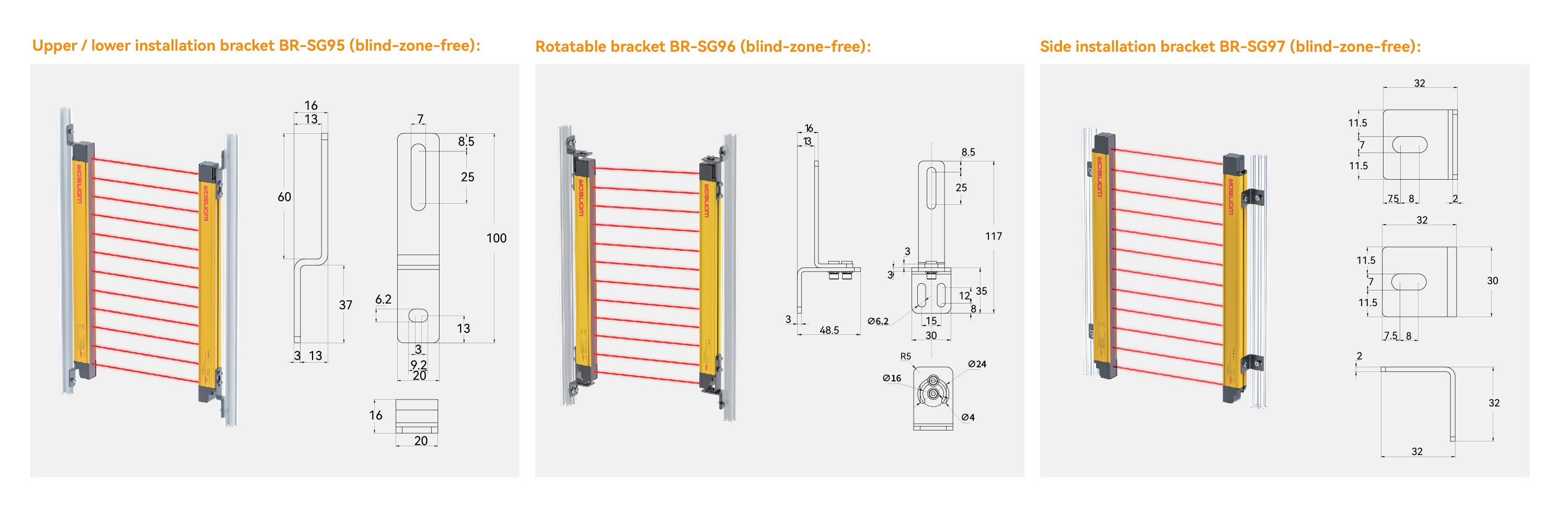

Installation mode

Through-beam type

Synchronization mode

Line Synchronization, Optical Synchronization

Shell color

Yellow

Enclosure rating

IP65/IP67(IEC60529)

Sectional dimensions

29mm*38mm

Operating Temperature

-10℃～+55℃（No Freezing）

Storage Temperature Range

-40℃～+70℃（No Freezing）

Ambient humidity

15%RH~85%RH（No Condensation））

Standard

IEC 61496-1 UL 61496-1(Type4 ESPE)、IEC 61496-2 UL 61496-2(Type4 AOPD)
ISO 13849（Category 4 ，PL e ）、IEC 61508（SIL 3）、IP67(IEC 60529)、IC 61326-1、
IEC 61000-6-1 、IEC 61000-6-3、UL 508、ROHS2.0、FCC Part15 Class A
